MClimate Fan Coil Thermostat (FCT)

PreviousRestart deviceNextRelease notes

Last updated 1 month ago

Was this helpful?

General information

MClimate Fan Coil Thermostat (FCT) is a thermostat compatible with 2-pipe and 4-pipe Fan Coil Units with 4 SPST relays, 1 DPST dry relay and 0-10V input/output. It features a 4.2" e-ink display, digital temperature and humidity sensor, and 4 buttons. It communicates over LoRaWAN and allows for rapid retrofit of buildings, offering modern BMS capabilities.

Learn more about MClimate Smart Building Solutions:

Purchase MClimate Fan Coil Thermostat:

Features

  • Temperature and humidity sensor

  • Compatible with 2-pipe and 4-pipe Fan Coil Units (FCU).

  • Manual adjustment of target temperature

  • 4.2" e-ink display

  • Optional changeover temperature sensor

  • 0-10V input/output

  • Child lock (ability to lock manual temperature adjustment)

Power supply

  • 100-240VAC 50Hz

Compatibility

  • LoRaWAN 1.0.3, Class C device, EU868

  • Encryption: LoRaWAN End-to-end encryption (AES-CTR)

  • Activation: OTAA

  • Link budget: 130dB

  • RF Transmit Power: 14dB

If you have any questions, feel free to reach out to us at lorawan-support@mclimate.eu

😲
MClimate - We make any building smartMClimate
MClimate Fan Coil Thermostat LoRaWANMClimate
2MB
FCT-LoRaWAN-User-Manual.pdf
pdf
User Manual
1MB
MClimate-FCT-Datasheet.pdf
pdf
Datasheet

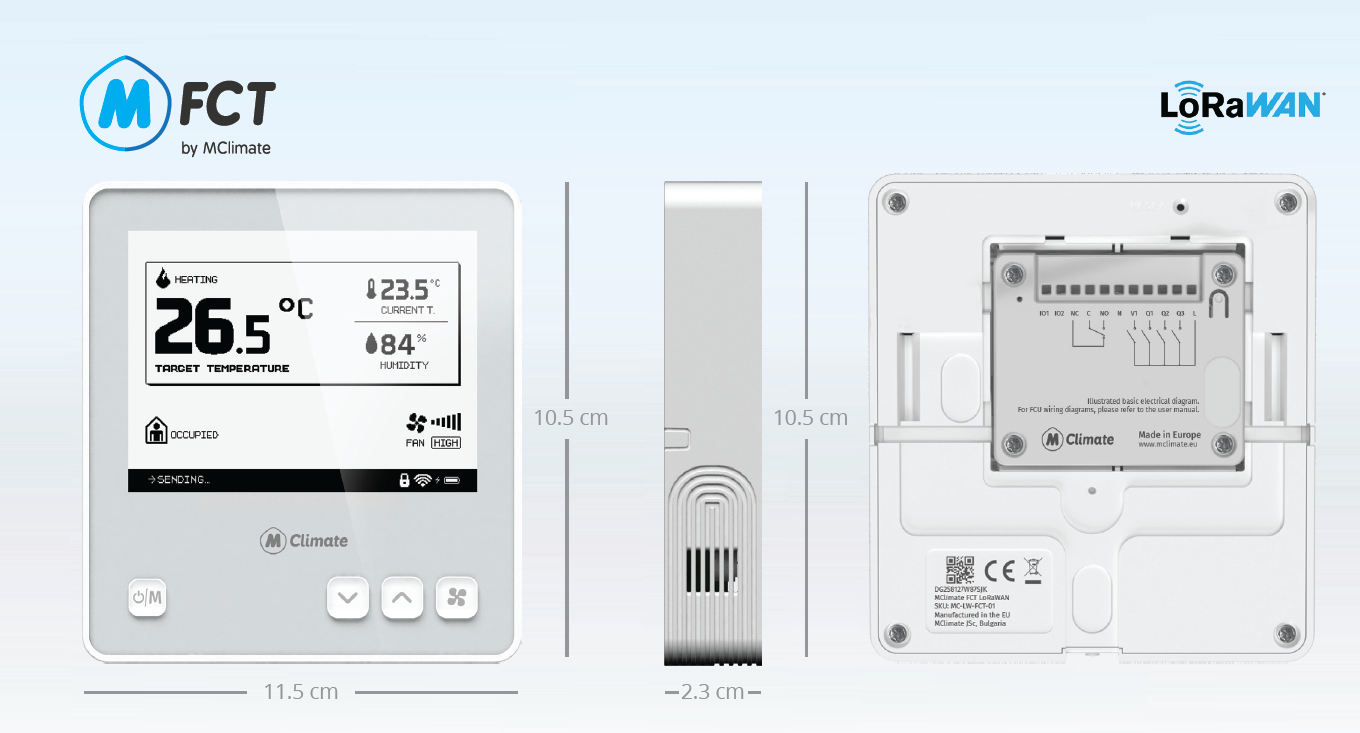

Device view and dimensions
